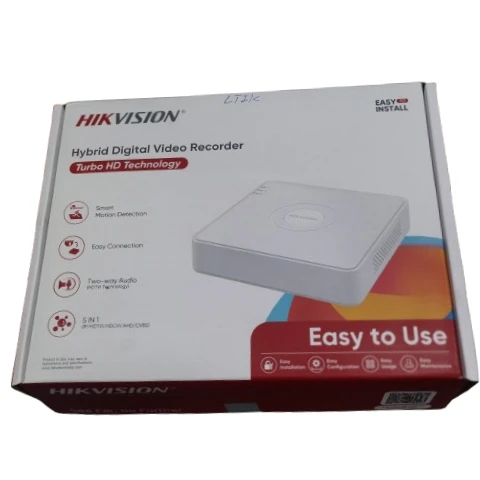

Hikvision DS‑7104HGHI‑M1/T 4‑channel Turbo HD DVR (1U)

📸 Key Features & Specifications

Smart Motion Detection 2.0

Uses deep‑learning AI to distinguish between humans and vehicles on all analog channels, reducing false alarms and enabling quick search by object type .

Video Compression

Advanced H.265 Pro+ (plus Pro/H.265/H.264+ support) significantly lowers storage use while maintaining quality .

Input Compatibility

Supports analog HDTVI/AHD/CVI/CVBS inputs and up to 1 IP channel (expandable to 5 IP channels up to 2 MP) .

1080p Lite Recording

All channels can record at “1080p Lite” resolution, close in visual quality to full 1080p .

Audio & Two‑Way Communication

Audio via coaxial cable on all analog channels, with one RCA input/output and support for two‑way audio on HDTVI .

Display Outputs

HDMI and VGA outputs (up to 1920×1080 at 60 Hz), can mirror both outputs simultaneously.

Storage

One SATA drive slot, supporting up to 4 TB HDD .

Network & Remote Access

One 10/100 Mbps Ethernet port, Hik‑Connect support, DDNS, easy remote viewing and management .

Physical Specs

Compact size (≈200×200×45 mm), low power consumption (< 16 W), and lightweight (< 0.8 kg without HDD) .
