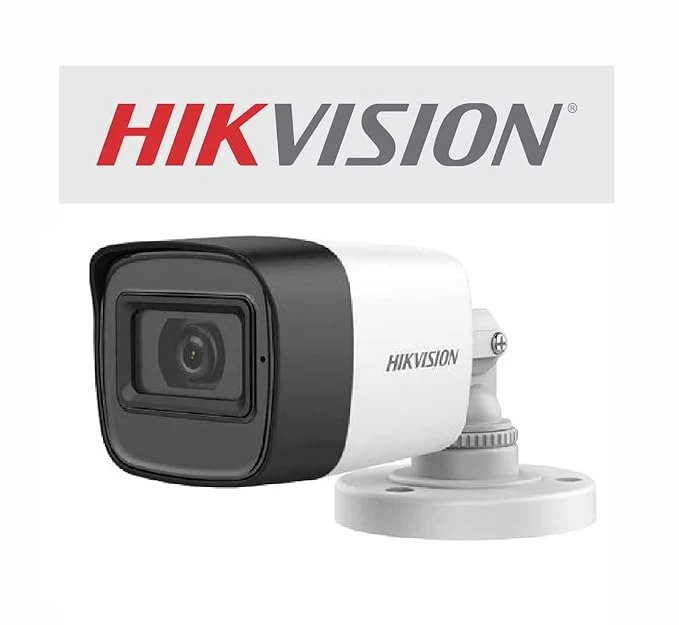

HIKVISION 2MP HD Bullet Camera

Specification

Camera

Image Sensor: 2 MP CMOS

Signal System: PAL/NTSC

Resolution: 1920 (H) x 1080 (V)

Frame Rate: TVI: 1080P@30fps, 1080P@25fps

Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time:

PAL: 1/25 s to 1/50,000 s

NTSC: 1/30 s to 1/50,000 s

Lens: 2.8 mm, 3.6 mm, 6 mm fixed lens

Field of View:

2.8 mm: H: 101°, V: 60°, D: 122°

3.6 mm: H: 79.6°, V: 43.5°, D: 93.7°

6 mm: H: 51.9°, V: 30°, D: 58.8°

Lens Mount: M12

Day & Night: ICR

WDR (Wide Dynamic Range): Digital WDR

Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

---

Menu

Image Mode: STD/HIGH-SAT

AGC: Yes

Day/Night Mode: Auto/Color/BW (Black and White)

White Balance: Auto/Manual

AE (Auto Exposure) Mode: DWDR/BLC/HLC/Global

Noise Reduction: 2D DNR

Language: English

Function: Brightness, Sharpness, Smart IR

---

Interface

Video Output: 1 HD analog output

---

General

Operating Conditions: -40°C to 60°C (-40°F to 140°F), humidity 90% or less (non-condensing)

Power Supply: 12 VDC ± 25%

Power Consumption: Max. 2.2 W

Material: Plastic

IR Range: Up to 20 m

Communication: HIKVISION-C

Dimensions: Ø 84.6 mm × 78.9 mm (Ø 3.33" × 3.11")

Weight: Approx. 135 g (0.30 lb.)
